PAPER THICKNESS RECORDER - GS4

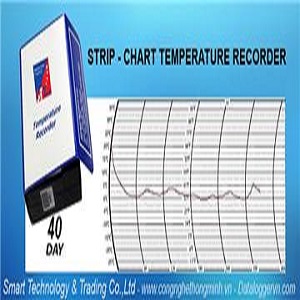

Paper chart temperature recorder is a high-reliability, low-cost temperature tracking and monitoring solution. The device creates a continuous flow of temperature graphs during storage and transportation. There are 5, 10, 20, 40, 75 and 90 days of recording time available. You can easily activate it by removing the "Start Tap" - "red arrow" (as shown below).
TECHNICAL SPECIFICATIONS
Temperature scale | -25 ° C to + 35 ° C (-13 ° F to + 95 ° F) |
Accuracy (temperature) | ± 1 ° C (1.9 ° F) or Better |
Paper chart | Total length of 91.4cm (36 ") |
Accuracy (time) | Average 20 seconds / month |
Temperature Sensor | NIST Traceable Bi-Metal Coil (HACCP Required) |
Drive | Solid State Quartz Controlled Clock Motor |
The battery | AA Alkaline |
Size | 5.5 "x 4.5" x 2.67 "(L x W x H) |
Weight | 291 gm (0.64 lbs | or 10.26 oz) |
Models | 10, 20, 40 and 60 days |
