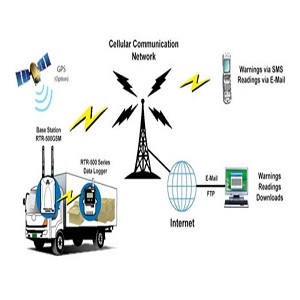

TandD Wireless System Using GSM, Wireless or Ethernet Communications
- Collects Measured Readings in Real-Time, On Demand or By Scheduled Download from RTR-500 Wireless Loggers through Network
- Each Data Collector Can Handle up to 20 RTR-500 Series Wireless Loggers
- System is Powered by Battery, AC Adaptor or External DC Power Source
- Alarm Notifications Are Sent to Email or Cellphone via SMS
- Data (Current or Logged) is Transmitted Over GPRS (Email or FTP) to Remote Server
- Accepts Remote Commands via SMS
- Maximum Communication Range of Collector to Logger is 150 Meters (500 ft)
- Repeaters (#RTR-500) Extend the Communication Range Increasing Distance
- Software is Included with Each RTR-500 Data Collector
A Complete System Requires a Base Collector (#RTR-500DC, #RTR-500GSM, #RTR-500NW or #RTR-500AW) and a RTR-500 Series Wireless Data Logger
RTR-500 Wireless System Specifications
Wireless Communications | RF Power: 7mW |
Cellular Phone Communications | Network: GSM850 / GSM1900 (PTCRB Certified) |
Functions | Auto Downloading of Recorded Data |
Power | Battery-Powered |
Current Consumption | At Most 2 Amps (5 Volts with GSM in Operation) |
Communication Interface | with PC: USB |
LED Indicators | Green: Power |
Battery | (4) AA Alkaline Batteries - User Replaceable |
Battery Life | 10 Days of Continuous Use @10 Minute Sampling Interval (Not Using GPS) |
Operating Environment | Temperature: 10°C to 55°C (Batteries); -10°C to 55°C (External Powered) |
Weight | 220 grams (7.76 oz.) - Includes Batteries |
Dimensions | 9.6cm x 6.6cm x 3.9cm (3.78" x 2.60" x 1.54") |
