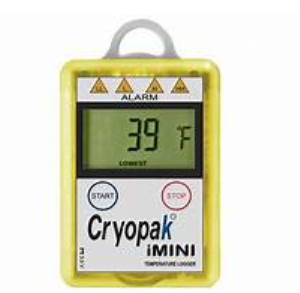

IMINI TEMPERATURE RECORDER
The iMINI iMINI data recorder offers advanced features that are well suited for monitoring temperature and moisture content of temperature sensitive products.
FUNCTION
+ LCD display shows many features
+ 4 alarm thresholds
Continuous marker and data recording
Large storage capacity
Connect your computer via USB
PRODUCT CODE
Model | Describe | Species | Storage capacity (value) | Number of probes | Probe location | Probe type |
MX-IN-S-8-L | Temperature | Used many times | 7,806 | first | Inside | NTC |
MX-OE-S-8-L | Temperature | Used many times | 7,806 | first | Outside | NTC |
MX-1E-S-8-L | Temperature | Used many times | 7,806 | 2 | 1 Inside & 1 Outside | NTC |
MX-2E-S-8-L | Temperature | Used many times | 7,806 | 2 | 2 Outside | NTC |
MX-HS-S-16-L | Temperature, humidity | Used many times | 15,998 | 2 | 2 Inside | Digital sensor |
MX-HE-S-16-L | Temperature, humidity | Used many times | 15,998 | 3 | 2 Inside & 1 outside | Digital sensor NTC |
TECHNICAL SPECIFICATIONS
Describe | Specifications |
Sample time | 5 seconds to 17 hours |
Accuracy (time) | ± 1 hour per year |
Transducer | Inside and / or outside |
Temperature scale | -40 ° C to +80 ° C (-40 ° F to +176 ° F) |
Scale of moisture | 0-100% |
Accuracy (temperature) | ± 0.5 ° C (-40 ° C to -10 ° C), ± 1 ° F (-40 ° F to +14 ° F) ± 0.3 ° C (-10 ° C to +70 ° C), ± 0.6 ° F (+14 ° F to +158 ° F) |
Accuracy (humidity) | ± 3% (10% -90%) ± 4% (˂10% and ˃ 90%) |
Resolution | 0.1 ° C / 0.1 ° F / 0.1% |
Reaction time | Internal transducer - T90 of 20 minutes moving in the air Transducer - T90 of 5 minutes moving in the air |
Operating temperature | -20 ° C to +70 ° C (-4 ° F to +158 ° F) |
Alarm threshold | 4 thresholds; 2 red LEDs, 2 green LEDs |
Configure alerts | HIGH HIGH, HIGH, LOW & LOW LOW |
Tick | Yes |
Programming options | User selectable |
Boot options | Button and / or time |
Automatic restart | Yes |
Delayed startup | Yes, 1 minute to 99 days |
Stop function | Stop button (có thể bị tắt) hoặc timer |
Size | 83 x 57 x 17mm |
Weight | 70 grams (including battery) |
Shell material | Polycarbonate / ABS |
The battery | 3.0V, user can replace (Panasonic Battery) |
Protection index | IP65 |
Calibration | NIST Traceable upon request |
Accuracy certification | Yes |
Other Certifications | ISO9001: 2008, CE, RoHS |
Battery life | 1-2 years |
Cable connection | USB |
Software | Console Plus |
Default file format | CVT |
Export the data file | PDF, TXT, CSV & CVT |
Security | Password protection (programmable using Console Plus Software) encrypted binary file is generated along with PDF |
