UTRIX-16 USB LOGGER RECORDER PDF - USING MANUAL

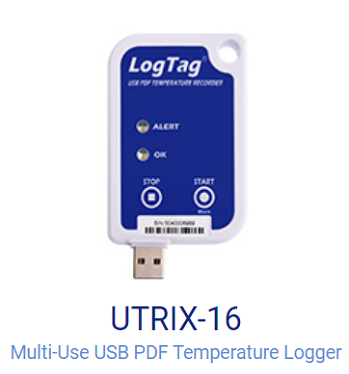

LogTag UTRIX-16 temperature recorder - efficient and cost effective.
No special software or hardware is needed to access the recorded data and can produce a full report in PDF format.
The UTRIX-16 stores real-time temperature readings in the measurement range from -25 ° C to + 70 ° C (-13 ° F to + 158 ° F), displaying alerts configured by the user. , and comes with an integrated USB connector.
The UTRIX-16 is polycarbonate tough and durable.
Salient features
USB connection - No separate cable required
Automatically generate a PDF report - No special software required
Automatically generate an encrypted LogTag data file - for a more detailed analysis and compliance with FDA CFR21 Part 11.
Up to 16,129 recorded values - Recorded device over 3 months with 10 minute sampling time
Equipment used repeatedly, can be reused.
TECHNICAL SPECIFICATIONS
Model | UTRIX-16 |
Range / Operating Temperature / Storage Temperature | -25 ° C to + 70 ° C (-13 ° F to + 158 ° F) |
Temperature resolution | 0.1 ° C (0.1 ° F) |
Accuracy | ± 0.5 ° C (± 0.9 ° F) from -20 ° C to + 40 ° C (-4 ° F to + 104 ° F) |
Response time sensor | Usually less than 7 minutes (T90) in air movement (1m / s) in EN12830: 1999 |
Storage capacity | 16,129 value recorded |
Sample time | Configure from 30 seconds to 18 hours |
Boot options | Press the start button or set the start time and date |
Recording directive | The 'OK' flashes blinking / 'ALERT' flashes. |
Download time | Typically with full memory (16,129 recorded value) less than 30 seconds after insertion into PDF reports |
Environmental | IEC 60529: IP64 with USB cap fitted. Fits into IP67 Protective Enclosure 200-000020 |
Warning function | High / low, single, consecutive and cumulative alarm events, 'OK' / 'ALERT' indicators |
Connector | USB 2.0, A-type plug |
Software | PDF Reader, LogTag Analyzer ® 2.6 or higher |
Battery life | Usually 2 years (Sample time is 15 minutes, download data monthly) |
