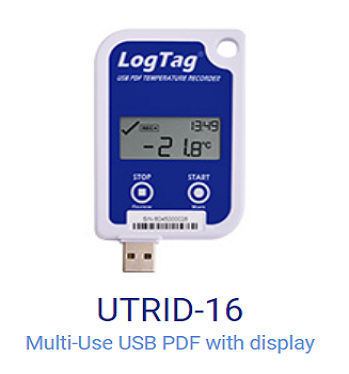

LOGTAG USB UTRID-16 TEMPERATURE RECORDER
LOGTAG TEMPERATURE CONTROLLER UTRID-16
• Display alarms and temperatures up to 6 alarms
• Can connect to any computer with USB port. No special connection cable required.
• Automatically generate a non-editable PDF report.
• Create a more comprehensive data file that is compatible with LogTag Analyzer software.
• Cost-effective, reusable, user-replaceable battery.
• Ideal for multi-stage distribution channels.
UTRID-16 display
Normal displays will display a summary of the current temperature, time, and warning indications if the current temperature is beyond the set alarm.
Configurations with LogTag Analyzer software allow you to set threshold values and temperature units displayed on the screen and PDF.
In the unit side picture is set to display the temperature value is oC.
A warning indicator is displayed if one or more of the triggered trigger conditions have been configured.
Alarm trigger status can be a read above or below threshold values, or a set of reads in succession or accumulation outside the threshold value.
Statistical data can be viewed by pressing the STOP / Review button. Statistics include max / min reads per day and time above or below the installed threshold.
The example below shows the time at temperatures below 2 ° C.
The device can be configured to pause the data processing, Alarms and max / min stats for a period of time after either button is pressed.
This allows the user to review the current statistics or delete an alert without causing an alarm or counterfeit statistics while processing the device.
TECHNICAL SPECIFICATIONS
Model | UTRID-16 |
Temperature scale | -25 ° C to + 60 ° C (-13 ° F to + 140 ° F). |
Operating temperature | -25 ° C to + 60 ° C (-13 ° F to + 140 ° F). |
Storage temperature | 0 ° C to + 40 ° C (32 ° F to + 104 ° F). |
Accuracy | Less than ± 0.5 ° C (± 0.9 ° F) from -20 ° C to + 40 ° C (-4 ° F to + 104 ° F). Less than ± 0.7 ° C (± 1.3 ° F) from -25 ° C to -20 ° C (-13 ° F to -4 ° F) + 40 ° C to + 60 ° C (+ 104 ° F to + 140 ° F). Actual performance is often much better than the published value. Please see the Absolute Precision table reviewed |
Resolution | 0.1 ° C (0.1 ° F). Please see the resolution table above. LogTag Analyzer® is currently displaying a decimal position of ° C or ° F. |
Response time | Usually less than 7 minutes (T90) travel in air (1m / s) in EN12830: 1999. |
Storage capacity | 16,129 values 112 days - sampling 10 minutes, 168 days - sampling 15 minutes. Static memory (displayed on LCD): Max / Min value and alarm time values. |
Sample time | Configure from 30 seconds to 18 hours |
Boot options | Push the button or on specific date and time. Delayed boot up to 72 hours. |
Recording Status Indicator | The "REC" indicator on the screen |
Configure alerts | 3 high alert limits and 3 low warning limits |
Download time | Usually with full memory (16,129 values) in less than 30 seconds since inserting the existing PDF report. Normally less than 10 seconds after inserting into the LTD file in the LogTag® Analyzer (if applicable? |
