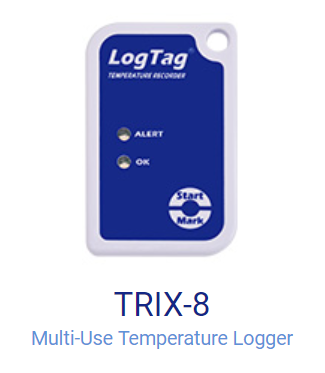

TEMPERATURE RECORDER WITH THERMAL OUTPUT IN THE LOGIX TRIX-8
Cost effective for temperature recording equipment
Measuring range: -40 ° C to 85 ° C
+ Battery life is 2-3 years
+ Extends battery life in hibernation mode.
Customizable alarm and LED indicator settings.
+ Press the Start button with "preset" mode to ensure safety.
Design in accordance with the United States Food and Drug Administration (FDA 21 CFR Part 11 Digital Signatures)
+ LogTag Analyzer software and data reading cable (LTI-USB or LTI-RS232) are required.
+ Compatible with Windows
+ Send Email or send File to Server
Obtained a WHO-UNICEF standard certificate on the product disclosure page.
+ Requirements for TRIX-8 : LogTag Analyzer software and data cable (LTI-USB or LTI-RS232)
Smart Tech is the official distributor of LogTag equipment in Vietnam
Smart Tech Award distribution equipment unit LogTag best of 2012 in Vie t Nam .
We are committed to providing the best price to customers and agents!
TECHNICAL SPECIFICATIONS
Measuring range | Temperature : -40 ° C to 85 ° C |
Resolution | 0.1 ° C for -40 ° C to + 40 ° C |
Accuracy | ± 0.5 ° C -20 ° C to + 40 ° C |
Reaction time | Usually less than 5 minutes when moving in the air |
Ability to save data | 8000 values (16000 bytes of memory) |
Sampling frequency | 30 seconds to 18 hours |
Show reading value | Can be installed to the recording card when conditions are preset |
Download time | Usually with a memory full (8000 values), the time is less than 5 seconds depending on the computer or reader device used |
Standard protection | IP65 (Protected against dust and low pressure jets of water, similar to NEMA 13 rating) |
The battery | 3V Lithium Battery |
Battery life | 2 ~ 3 years of normal use (15 minutes sampling and retrieval of data per month) |
Software | Windows 32-Bit Vista and XP, Windows 7 Compatible |
Size | 86mm x 54.5mm x 8.6mm (3.39 "x 2.14" x 0.33 ") |
Weight | 35g |
Shell material | Polycarbonate |
Matched with EMC | Tested and complies with EC EMC directives (EN 50081-1: 1992 & EN 61000-6-1: 2001). Tested and complies FCC Part 15 Subparts A and B. |
Complies with EN12380 | Proven and in line with EN12830: 1999 for the transport, storage and distribution of refrigerated , frozen , make the winter cold quickly and other applications . |
