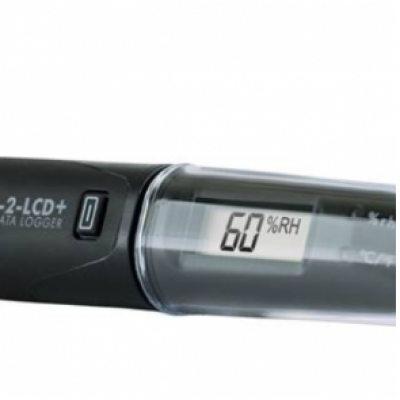

EL-USB-2-LCD USB Data Logger with LCD display

The data logger is ideal for applications where measuring temperature ranges and humidity are required. At the touch of a button, use the on-board display to cycle between the current, minimum and maximum logs for both temperature and humidity. Easily set up the logger and view downloaded data by plugging the unit into a PC’s USB port and using the free EasyLog software. Data can then be graphed, printed and exported to other applications for detailed analysis.

Measures temperature (-35°C - +80°C), humidity (0% to 100%) and calculates dewpoint.
Compatible with Windows 2000, XP, Win7 and Vista.
Export to Excel functionality.
Battery powered, standalone solution.
Simple USB interface for setup and data download.
Over 16000 temperature readings and 16000 humidity readings, with a memory rollover function for continuous logging.
User programmable sample rates and high/low alarm rates.
Bright red, green and amber LED status indication.
High contrast LCD for viewing the last logged readings.
Push-to-start and delayed logging modes.
Ideal for applications where extended temperature ranges and humidity are to be measured.
Set-up and data download from EasyLog data loggers is enabled by the EL-WIN-USB software available here:www.easylogusb.com.

Supplied with

1/2 AA battery and wall mount clip

Specifications
