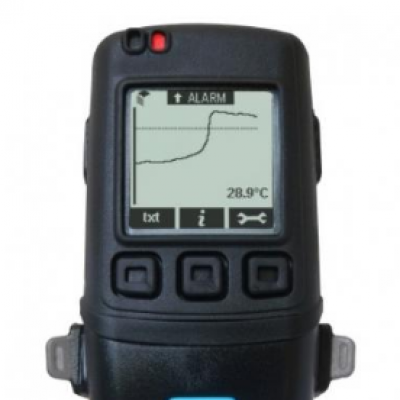

TEMPERATURE AND RELATIVE HUMIDITY DATA LOGGER WITH GRAPHIC LCD EL-GFX-2

The EL-GFX-2 standalone USB data logger measures and stores over 250,000 temperature and humidity readings over a -30 to +80ºC (-22 to 176°F) and 0 to 100%RH range at a resolution of 0.1ºC and 0.1%RH. Using the Windows control software (available as a free download from www.congnghethongminh.vn), users can quickly set up the data logger and view downloaded data by connecting the device to the PC’s USB port using the supplied cable.

The data logger features a high-contrast graphic LCD and three-input buttons. This allows users to start, stop and restart the data logger using on-screen menus. This menu also provides real-time analysis of data either as a data summary (showing highest & lowest readings and alarm conditions) or as a graph that updates as new data is added. Multiple data logging sessions can be stored on the device ready for upload to a PC at a later date.
The data logger’s robust design provides IP-67 waterproof protection and the two replaceable ½AA batteries typically allow logging for up to four months.

FEATURES

+ Rugged and robust, IP67 construction

+ From -30 to +80°C and 0 to 100% RH measurement ranges

+ Logging rates between 10 seconds and 1 hour

+ Stores over 250,000 readings

+ On screen menu and graphing to start, stop, review and restart the logger in the field

+ Micro USB interface for PC based set-up and data download

+ Immediate, delayed, push-button or temperature/RH triggered start mode

+ User-programmable alarm thresholds

+ Graphic LCD shows real-time readings, graph and current status

+ Resettable Min/Max readings may be viewed on the LCD

+ User set audible alarm

+ Highly visible confidence/alarm LEDs

+ Supplied with user replaceable ½ AA batteries

SPECIFICATION
